DEKO OC

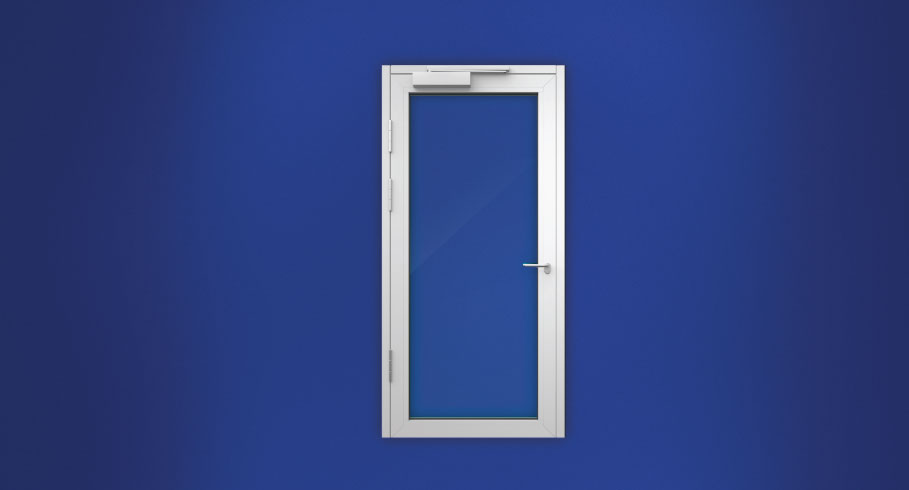

DEKO OCEAN GD A60 GLAZED DOORS
The GD A60 glazed doors are an integrated part of the world’s probably lightest fire
classified fully glazed partitioning system for cruise ships, ferries and luxury yachts.
-
A60
Fire resistance
-
35-43dB2
Max Frame size
-
74mm
Profile size
DEKO OC
DEKO OCEAN GD A60 GLAZED DOORS
The GD A60 glazed doors are an integrated part of the world’s probably lightest fire classified fully glazed partitioning system for cruise ships, ferries and luxury yachts.
The doors are fire tested and classified according to the latest FTP 2010 standards set by the International Maritime Organization (IMO).
A COMPLETE DOOR SYSTEM
The doors are developed as a complete system where all parts of the doors are designed to match the design of the GP A60 partitions – a minimalistic narrow aluminium frame is all that meets your eye. DEKO Ocean GD A60 are available as single or double doors and can be built into GP A60 partitions and other types of partitions. DEKO Ocean GD A60 doors have been fire tested at an internationally recognized and accredited fire institute and certified by Bureau Veritas.
APPLICATION
DEKO Ocean GD A60 can be furnished with various high quality marine-type hardware and accessories. The doors can be supplied as self closing and automatic, as well as with anti-panic function. Custom-made designs are available on request.
NARROWER AND LIGHTER
The doors are an integrated part of the DEKO Ocean partition concept that is up to 25% narrower and 25% lighter than most of the other competing systems on the market today.
COLOURS AND SURFACE FINISHES
GD A60 door frames are supplied in natural anodised aluminium as standard and powder coated colors are also available. In addition, the profiles can also be supplied with special surface finishes such as copper look, stainless steel look etc.
DEKO OC
GD B15 SLIDING D
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nulla urna massa, ultricies sed vehicula quis, feugiat eu turpis. Curabitur convallis, metus vel finibus vehicula, ipsum lectus bibendum massa, non congue arcu tellus ac erat. Vivamus mattis sed quam quis consectetur. Nunc eu dapibus justo, id semper dolor.
01
Interdum et malesuada
Sed lacinia metus et arcu cursus ultricies. Fusce eu aliquet nibh. Cras sit amet rhoncus neque. Integer rhoncus tortor sed justo pulvinar cond.
02
Morbi eget risus
Morbi sit amet orci et nibh laoreet hendrerit in in elit. Etiam volutpat ex nulla, pretium tempor elit molestie ut. Integer blandit interdum risus id semper nulla mattis purus quis felis.
A COMPLETE DOOR SYSTEM
| Type | Fire resistance | Door leaf thickness | Door weight | Glass weight (m2) |
| Single door | A60 | 74mm | 52kg1 | 59kg |
| Double door | A60 | 74mm | 85kg1 | 59kg |
| Type | Max. door frame size | Max. door leaf size | Sound insulation (Rw) |
| Single door | 1400*2400mm | 1340*2358mm | 35-43dB2 |
| Double door | 2371*2400mm | 1164*2358mm | 35-43dB2 |
-
01
Standard door size (frame+leaf): 900*2000*74 and 1800*2000*74
-
02
The airborne sound insulation of sliding door depends, among other things, on the glasstype installed and door sill.
Please be aware that drop sealant can be delivered in various solutions and door stops are available on request.
