DEKO OC
DEKO OCEAN MV
Glazed Panel Walls With Optional Stacking Arrangements
-
Non-rated
Fire resistance
-
–
Max Frame size
-
–

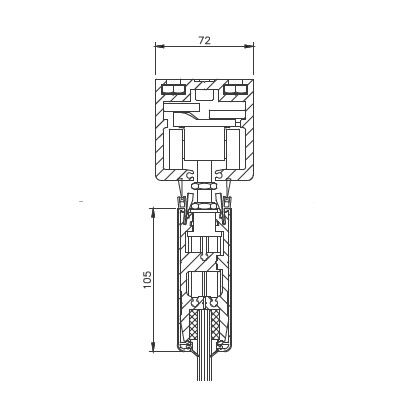

Profile size
DEKO OC
DEKO OCEAN MV
Glazed Panel Walls With Optional Stacking Arrangements
Like our solid panel walls DEKO MV, DEKO MV Glass is particularly suited to dividing up large spaces into smaller units and with specific requirements for stacking and installation. Fully glazed panel walls with their flexible structure and their transparent look with a single layer of glass, are the perfect choice for offices and shops or even wind breaks. Panel walls can be integrated into existing walls or built together with DEKO FG fully glazed partitions, to bring the whole unit into a harmonious concept.
Unique in its very own way
The DEKO MV Glass has been specifically tailored for individual interior and exterior decoration and can be supplied largely in almost all heights and widths. The fully glazed panels are supplied as standard with 10 mm or 12 mm toughened clear safety glass. These are fitted with slim natural anodised aluminium tracks at the top and bottom of each pane. As standard the last glazed element against a fixed wall functions as a pass door and is fitted with a floor lock. Options for door handles include a recessed handle, a knob, a bracket
handle or a ball catch. As the panel wall is tailored to each interior design, it can be fitted, for example, to fit in with the building’s modules or follow a 90 degree corner without having to be divided up into several separate panel sections. The flexible structure of the panel wall allows the whole wall or just parts of the wall to be closed, depending on the desired functionality.
Suspension, locking and stacking
DEKO MV Glass requires to be supported structurally from above by an aluminium track. The top-hung tracks of the fully glazed panel wall are produced individually for each contract, giving a wide range of stacking options. The running track in the ceiling structure and the aluminium rails on the glazed elements can be powder coated in a wide variety of colours. As each glazed panel is handled and locked individually, there are countless stacking options to cause least possible inconvenience both to the eye and with regard to space. In areas with high sound requirements, we recommend our solid DEKO FV2 folding wall or the MV2 fully framed glass partition.
Decoration
Like our other DEKO glazed partitions, DEKO MV Glass is suitable for applied film in such designs as stripes, patterns or
texts in various colours or frosted versions. One or more glazed elements in the panel wall can be supplied with coloured or frosted glass for both privacy and options to use the surface as whiteboard.
DEKO OC
GD B15 SLIDING D
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nulla urna massa, ultricies sed vehicula quis, feugiat eu turpis. Curabitur convallis, metus vel finibus vehicula, ipsum lectus bibendum massa, non congue arcu tellus ac erat. Vivamus mattis sed quam quis consectetur. Nunc eu dapibus justo, id semper dolor.
01
Interdum et malesuada
Sed lacinia metus et arcu cursus ultricies. Fusce eu aliquet nibh. Cras sit amet rhoncus neque. Integer rhoncus tortor sed justo pulvinar cond.
02
Morbi eget risus
Morbi sit amet orci et nibh laoreet hendrerit in in elit. Etiam volutpat ex nulla, pretium tempor elit molestie ut. Integer blandit interdum risus id semper nulla mattis purus quis felis.
A COMPLETE DOOR SYSTEM
| Type | Fire resistance | Profile size | Std. glass panel size | Glass weight | Frame weight | Air permeability Tested wind load |
| Glazed panel | Non-rated | 39*106mm | 10*1100*3700mm | 25 kg/m2 | 5.08 kg/rm | Class 2 37m/s |
Possible functions
Pivoting end panel, single or double action
Sliding panel
Single action sliding panel
Double action sliding panel
Fixed panel
